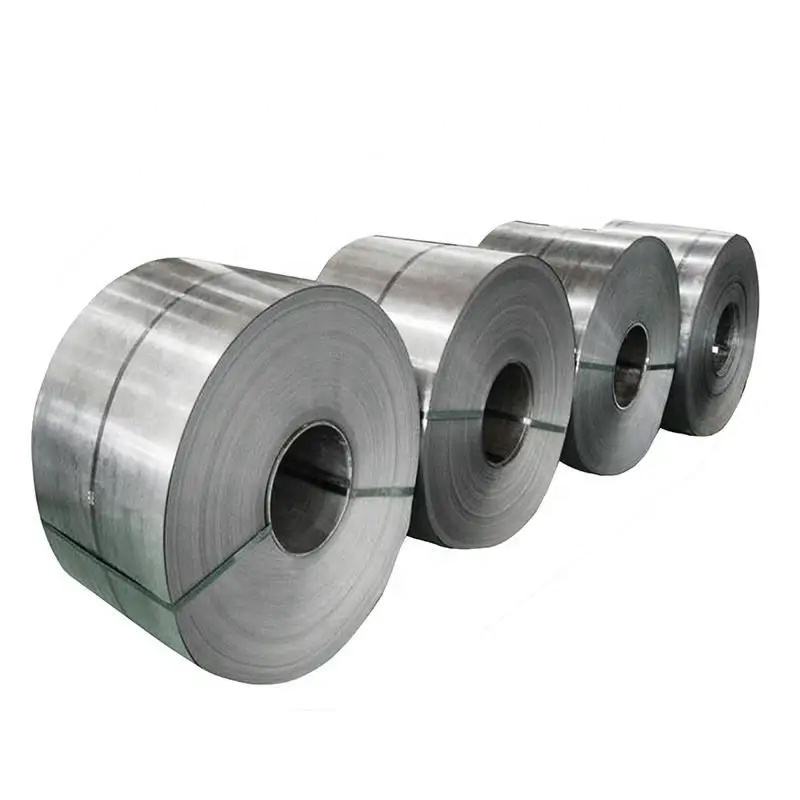

A572/S355JR CARBON STEEL COIL DESCRIPTION

A572 grades are divided into: 42, 50, 60, 65. The steel plate is light in weight, but has good strength, ductility and workability, making it an ideal choice for structural applications. These characteristics make the A572 relatively simple to shape into different structures, while maintaining the ability to withstand large stresses and loads.

PRODUCT PARAMETERS

Product Name	A572/S355JR Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 0.7mm-30mm Cold Rolling: 0.1mm-6mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



CHEMICAL COMPOSITION

A572	C	Mn	P	S	Si
Grade42	0.21	1.35	0.03	0.03	0.15-0.4
Grade50	0.23	1.35	0.03	0.03	0.15-0.4
Grade60	0.26	1.35	0.03	0.03	0.40
Grade65	0.23-0.26	1.35-1.65	0.03	0.03	0.40



MECHANICAL PROPERTIES

A572	Yield Strength(Ksi)	Tensile Strength(Ksi)	Elongation% 8inches
Grade42	42	60	20
Grade50	50	65	18
Grade60	60	75	16
Grade65	65	80	15



PHYSICAL PERFORMANCE

Physical Performance	Metric	Imperial
Density	7.80g/cc	0.282 lb/in³



SCOPE OF APPLICATION

ASTM A572 carbon steel low-alloy steel is widely used as bridge panels, support plates, mechanical mounting plates, etc. for construction equipment, transmission towers, racks and other equipment.



EQUIVALENT MATERIAL

EU	German Standard	Japanese Standard	French Standard	British Standard	Canada	Italy	Spain	National Standard	International	Portugal	India
EN	DIN, WNr	JIS	AFNOR	BS	HG	UNI	UNE	GB	ISO	NP	IS
S355JR	St52-3	SM490A	E36-2	50B	350W	Fe510B	AE355B	Q345B	E355C	FE510-B	IS961

PACKING AND DELIVERY

The company has become a trustworthy partner of the international steel industry. After nearly two decades of unremitting efforts, our customer base now covers more than 110 countries and regions in Europe, the Middle East, South America, and Southeast Asia.
