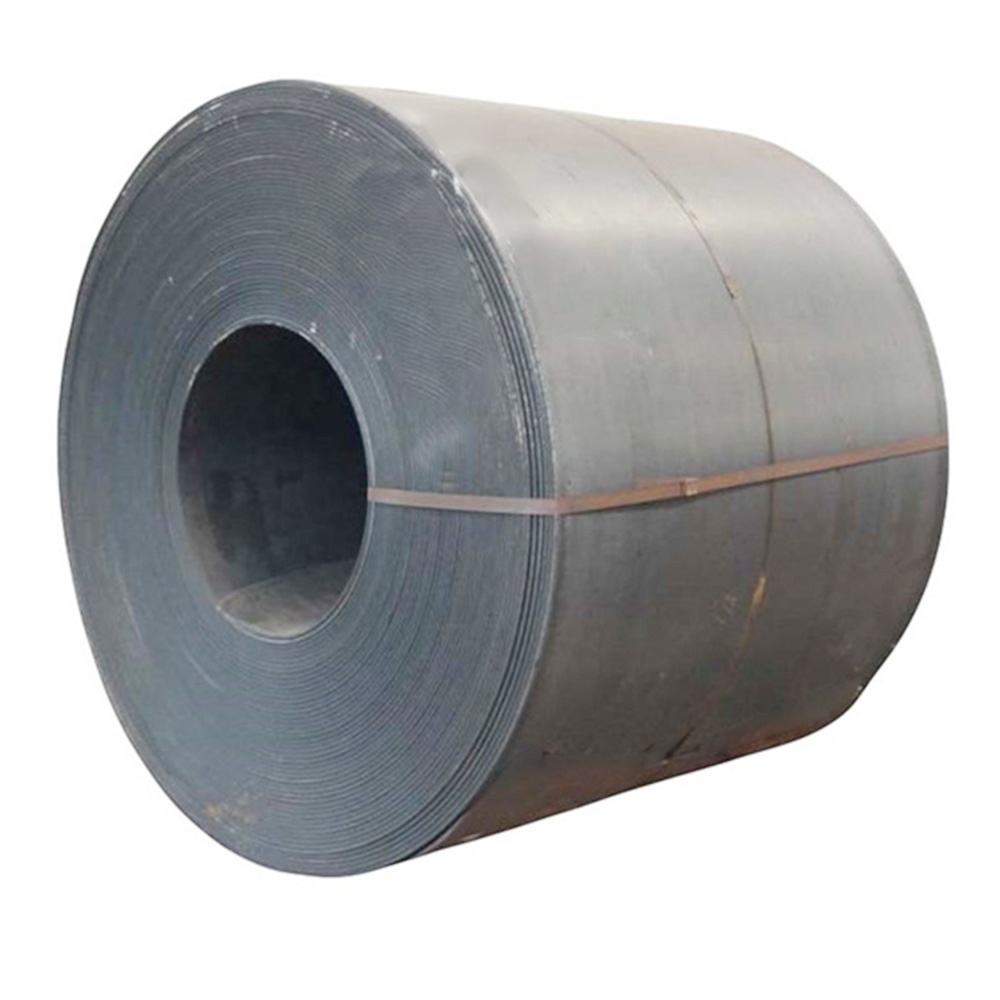

JIS G3101 SS400/SS490/SS540 CARBON STEEL COIL DESCRIPTION

JIS G3101 SS400 is a common carbon structural steel grade. Other grades of JIS G3101 are ss330, ss490 and ss540. Relevant product types include steel coils, steel plates, steel sections, and steel pipes.

PRODUCT PARAMETERS

Product Name	JIS G3101 SS400/SS490/SS540 Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 0.7mm-30mm Cold Rolling: 0.1mm-6mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

CHEMICAL COMPOSITION

Brand	Carbon	Manganese	Phosphorus	Sulphur
SS400	–	–	0.050max	0.050max
SS490	–	–	0.050max	0.050max
SS540	0.30 max	1.60 max	0.040max	0.040max

MECHANICAL PROPERTIES

Brand	Yield Strength				Tensile Strength
	≤ 16	16-40	40-100	>100	–
SS400	245	235	215	205	400-510
SS490	285	275	255	245	490-610
SS540	400	390	–	–	540

SCOPE OF APPLICATION

JIS G3101 scope of application: JIS G3101 steel plate and other steel grade products are suitable for general structural buildings, such as bridges and ships.

PACKING AND DELIVERY

The company has become a trustworthy partner of the international steel industry. After nearly two decades of unremitting efforts, our customer base now covers more than 110 countries and regions in Europe, the Middle East, South America, and Southeast Asia.
