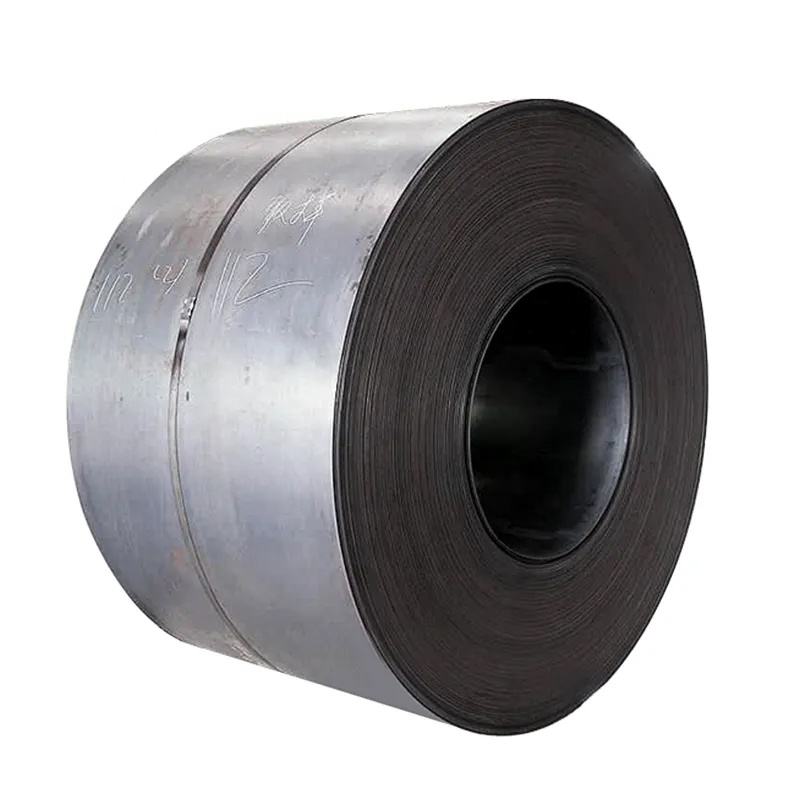

A36/Q235/S235JR CARBON STEEL COIL DESCRIPTION

A36 is a low-carbon steel containing trace amounts of manganese, phosphorus, sulfur, silicon and other elements such as copper. A36 has good weldability and high yield strength, and is the structural steel plate specified by the engineer. ASTM A36 steel plate is often manufactured into a variety of structural steel parts. This grade is used for welded, bolted or riveted construction of bridges and buildings, as well as for general structural purposes. Due to its yield point, A36 carbon plate can be used to design lighter-weight structures and equipment, and provide good weldability. Construction, energy, heavy equipment, transportation, infrastructure and mining are the industries where A36 panels are commonly used.

PRODUCT PARAMETERS

Product Name	A36/Q235/S235JR Carbon Steel Coil
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	45mm-2200mm
Length	Custom Size
Thickness	Hot Rolling: 0.7mm-30mm Cold Rolling: 0.1mm-6mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film



CHEMICAL COMPOSITION

C	Cu	Fe	Mn	P	Si	S
0.25-0.290	0.20	98.0	1.03	0.040	0.280	0.050



MECHANICAL PROPERTIES

A36	Limit Tensile Strength	Tensile Strength, Yield Strength	Elongation at Break (Unit: 200mm)	Elongation at break (Unit: 50mm)	Modulus of Elasticity	Bulk Modulus (Typical for Steel)	Poisson’s Ratio	Shear Modulus
Metric	400-550MPa	250MPa	20.0%	23.0%	200GPa	140GPa	0.260	79.3GPa
Imperial	58000-79800psi	36300psi	20.0%	23.0%	29000ksi	20300ksi	0.260	11500ksi



PHYSICAL PERFORMANCE

Physical Performance	Metric	Imperial
Density	7.85 g/cm3	0.284 lb/in3



SCOPE OF APPLICATION

Bolted, riveted or welded structures for bridges, buildings and oil drilling rigs.
Used for forming storage tanks, silos, bearing plates, fixtures, rings, templates, fixtures, sprockets, cams, gears, bottom plates, forgings, decoration engineering, piles, brackets, automobiles and agricultural equipment, frames, mechanical parts, etc.



EQUIVALENT MATERIAL

National Standard GB	European Standard EN	American Standard ASTM	German Standard DIN, WNr	Japanese Standard JIS	French Standard AFNOR	British Standard BS	Canada HG
Q235B	S235JR	A283C	St37-2	SM400A	E24-2	40A/40B	230G
Italy UNI	India IS	Switzerland SS	Australia ONORM	Norway NS	Spain UNE	International Standards ISO	Portugal NP
Fe360B	IS2062	1311/1312	RSt360B	NS12123	AE235B-FN	E235B/ Fe360B	FE360-B

PACKING AND DELIVERY

The company has become a trustworthy partner of the international steel industry. After nearly two decades of unremitting efforts, our customer base now covers more than 110 countries and regions in Europe, the Middle East, South America, and Southeast Asia.
